    SDR cu numai 20 Euro

    In ultima perioada au aparut multe modele de stickuri receptoare DVB-T/DAB/FM bazate pe cipurile E4000 si RTL2832U folosind tehnologia Softwere Defined Radio, prescurtat SDR.
    Pentru cei care vor sa receptioneze spectrul de fregventa de la 63 MHz la 1,7GHz, pot folosi unul dintre numeroasele modele de stickuri comercializate pe piata.

    http://www.ebay.com/itm/DVB-T-TV-Tun...3f4936&vxp=mtr

    http://shop.sysmocom.de/products/tv28t-bulk

    Cerinte PC : Mimin Core2Duo 2GHz, 1G ram, Windows 7



    Instalare rapida

    Downloadati ultima versiune de zadig si distributia SDR Sharp de la K5DEV.

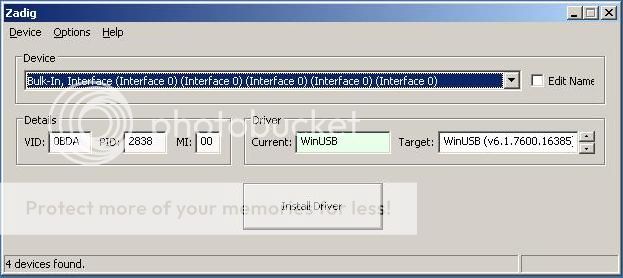

    Rulati zadig.exe si introduceti stickul in usb. Asteptati sa-si faca windowsul mendrele si dati cancel la tot ce vrea sa instaleze.
    Apasati butonul Install Driver


    Dezarhivati sdrsharp_k5dev_1.1.1.zip, apoi dublu click pe SDRSharp.exe


    Selectati de langa butonul Front end RTL-SDR / RTL2832U
    Apasati butonul Play si veti optine primul dumnaevostra receptor SDR

    Bafta la DX !
    www.rdi-board.com www.new-rdi.com

    #2
    Tind s-a cred ca, interesul ar fii mai mult daca ar fii testat pe linux, pare a fii copatibil si cu receptoare linux cat si cu tv samsug...din testele citite pe samygo.

    Comment


      #3





      Link
      Last edited by 007/Ro; 17 April 2013, 13:29.
      RDI-Boards XtraFM !

      R
      TVDXRO
      DXinfo Feeds Keys
      RDI

      Comment


        #4
        Inceputul primei etape din CN UUS



        www.rdi-board.com www.new-rdi.com

        Comment


          #5
          RDI-Boards XtraFM !

          R
          TVDXRO
          DXinfo Feeds Keys
          RDI

          Comment


            #6
            1

            intrebare
            ce antene trebuie sa construiesc ca sa acopar atata spectru?
            jucaria mea

            Comment


              #7
              nu stiu daca merita sa te muncesti sa faci una http://www.lccom.ro/product_info.php...products_id=90
              www.rdi-board.com www.new-rdi.com

              Comment


                #8
                corect
                cu asemenea scula se merita
                merci
                jucaria mea

                Comment


                  #9
                  din pacate sdr e cam surd,ii trebuie un preamplificator si ceva filtre.
                  DM 500S,Hyundai Digicablu,Humax DIGI C HD,Diablo CAM,VU+ UNO,HH DM3800s,Triax TDA110,Inverto single black

                  Comment


                    #10
                    Ce tare pai si cu un transverter gen FC-965DX-T si tot e mai ieftin decat un PCR ICOM .
                    We came out from the deep to help and understand but not to kill
                    Enigma - " Second Chapter "

                    Comment


                      #11
                      Covertor pentru HF
                      http://www.ct1ffu.com/site/index.php...178&Itemid=104

                      Stie cineva de unde pot cumpara niste mixere ADE-1 ?
                      www.rdi-board.com www.new-rdi.com

                      Comment


                        #12


                        How does the new RTL-2832U / E4000 compare to the newer RTL-2832U / R820T dongle for SDR use? Very similar except that the RTL-2832U / R820T seems to perform much better at higher frequencies like 800MHz trunking and 1090MHz ADS-B. The RTL-2832U / R820T also has the bonus of some HF reception between 24MHz - 30MHz. Read more at www.hamradioscience.com
                        RDI-Boards XtraFM !

                        R
                        TVDXRO
                        DXinfo Feeds Keys
                        RDI

                        Comment


                          #13
                          RDI-Boards XtraFM !

                          R
                          TVDXRO
                          DXinfo Feeds Keys
                          RDI

                          Comment


                            #14
                            Da proxel urile sunt bune.
                            Dar mai trebuie spus (ca sa fie clar) aceste stickuri (tip scanner) sunt numai si numai pentru receptie.
                            Daca vrem si emisie Flex 1500 sau kituri.

                            Pentru antrenament: http://websdr.yo3ggx.ro:8765/

                            S=Sierra nu Santiago
                            Last edited by triceraptor; 17 April 2013, 16:22.

                            Comment


                              #15
                              Pentru cei care mai au si o tableta android pe linga stick:
                              http://sdr.martinmarinov.info/
                              http://forum.xda-developers.com/show...php?p=36930621

                              Aplicatii radio pentru android:
                              http://zr6aic.blogspot.ro/2012/06/an...-amateurs.html

                              Comment
