Thread: LyngBox HD

  1. #1
    Silver Member Expert
    Join Date
    Mar 2006
    Posts Thanks / Likes

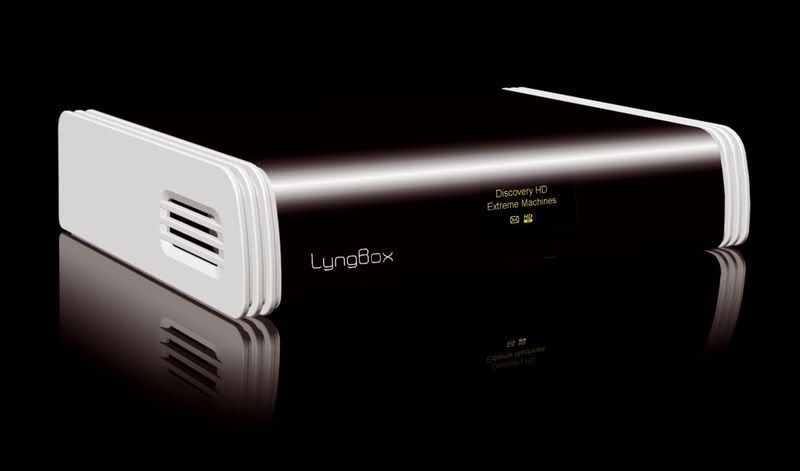

    Default LyngBox HD

    despre receptorul asta stie cineva mai multe ? l-a testat cineva ?

    In the box
    LyngBox HDMI cable
    Ethernet cable
    Power cable
    Terrestrial antenna cable
    Remote control
    2 x AA batteries

    System specification
    STMicroelectronics CPU
    Three CPU cores (1×266 MHz, 2×384 MHz)

    System memory
    RAM: 96 MB
    Flash: 32 MB
    Hard disk: 160 GB
    Store up to 50,000 channels

    Linux operating system
    Proprietary LyngBox software
    Software upgrade over Internet

    Size (WxHxD) 384×83×256 mm
    Weight 3,8 kg

    Line voltage AC 85-265V
    Frequency 50/60Hz
    Mains Power switch

    Image formats

    Video formats
    Supported resolutions: 576i, 576p, 720p, and 1080i

    Video output
    HDMI, Component (Y-PB-PR), SCART, and Composite
    16:9 and 4:3 TV screen format

    Audio output
    Optical S/PDIF (PCM or Dolby Digital pass-through)
    Analog stereo audio (2 x RCA)

    Video decoder
    H.264/MPEG-4 AVC
    DVB Subtitling support
    Teletext support

    Audio decoder
    Dolby Digital (downmix)

    OLED front panel display
    Indicators for:
    -Current channel
    -Program name
    -New mail
    -HD or SD transmission
    -Dolby Digital multichannel audio
    -PVR status

    Store up to 40h HDTV or 120h SDTV
    Time shift capability

    Satellite input
    Supports DVB-S and DVB-S2
    Modulation: 8PSK, QPSK
    Symbol rate (Msymbols/s):
    -DVB-S: 1-45
    -DVB-S2: 10-30
    Frequency range:
    -950-2150 Mhz
    DiSEqC: 1.1 and 1.2
    LNB voltage: 13/18 V
    Tone control: 22 kHz
    Support for C and Ku band
    Support for DiSEqC 1.2 motors

    Terrestrial input
    Frequency bands: UHF, VHF
    Channel bandwidth: 7, 8 MHz
    Antenna power: 5 V
    Nordig compliant
    Antenna output (pass-through)

    Conditional access
    2 x Common Interface slots

    Universal remote control
    Operate LyngBox, TV and DVD
    A wireless keyboard can be added as accessory

    100BaseT Ethernet port
    4 x USB 2.0 port for external devices
    Attach a storage device and transfer files

    Expansion slot for tuner expansion card

    * Shipping Weight: 3.8lbs
    * Manufactured by: Lyngbox

  2. #2
    Senior Member Expert
    Join Date
    May 2003
    Posts Thanks / Likes


    l-am testat eu aici >>> am butonat la vreo 30 de minute si nu am reusit sa-l blochez arata fain asa la prima vedere ok cu suport...... sta prost

    @nirolf magazinul este in 12 linga tine :P dute sa l probezi sa ne spui si nouä parerea ta

    ps:singura chesti ce m-a deranjat la receptor este faptul ca arata ca un video 2000 daca mai stiti se introduce caseta pe partea de sus prea mare...

  3. #3
    Silver Member Expert
    RDI - Board Default Avatar

    Join Date
    Jan 2004
    Posts Thanks / Likes


    Si eu tot asta am zis in alt thread, in poza e mishto dar in realitate e un monstru, cel mai mare aparat ce l-am vazut in ultimii ani. Si galagie face cit un compresor, insa ar fi concurentul direct dreambox daca ar avea alt pret. Asta cel putin a fost parerea celor de la HM-Sat din Berlin unde l-am vazut si butonat putin. Interfata e foarte foarte asemanatoare cu dm800.


    La dimensiunile lui ar trebui pus sub un televizor cu lampi pt a se potrivi.
    19,2°E + 13°E + 4,8°E + 0,8°W => Invacom 0,3 => DM800 + DM500

    Avantajul unui om inteligent este ca poate face usor pe prostul, invers e ceva mai dificil.....

  4. #4
    Gold Member Expert
    RDI - Board Default Avatar

    Join Date
    Dec 2003
    Posts Thanks / Likes


    Este urat ca Draq ! fatza urata vinde prost ! sperie copii ! acreste laptele si vinul ! puahhh !
